Analyzer & Instrumentation Pressure Regulators
Typically incorporating Inconel® X750 diaphragm-sensed elements to provide strength and flexibility, our versatile Analyzer and Instrumentation range of pressure regulators include design features that make us the market leaders in this sector with products from gas cylinder regulators to ATEX certified (2014/34/EU) heated regulators.

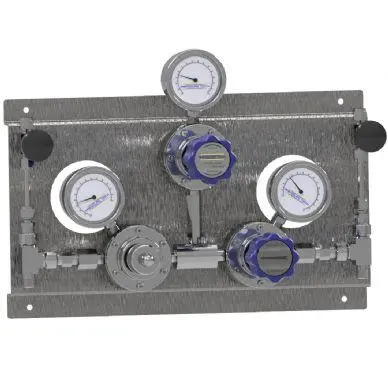

Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.5
Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 10 bar (145 psi) / Cv 0.06
Auto-Changeover System: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv 0.06
Auto-Changeover Regulator/Unit: Gas / Diaphragm / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 20 bar (290 psi) / Cv: 0.06
Cylinder Pressure Regulator Assembly: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06
Cylinder Pressure Regulator Assembly: Gas / Piston / Self- or Non-Venting / Max. Inlet: 550 bar (7,975 psi) / Max. Outlet: 414 bar (6,000 psi) / Cv 0.1
Low-Flow Pressure Regulator: Gas / Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 10 bar (145 psi) / Cv 0.06
Low-Flow Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 or 0.15
Compact and Low-Flow Pressure Regulator: Gas / Piston / Non-Venting / Max. Inlet: 300 bar (4,350 psi) / Max. Outlet: 100 bar (1,450 psi) / Cv 0.06
Two-Stage Pressure Regulator: Gas / Inconel® X750 Diaphragm / Disk Seat / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 25 bar (360 psi) / Cv 0.06
Two-Stage Pressure Regulator: Gas / Piston / Disk Seat / Non-Venting / Max. Inlet: 414bar (6,000psi) / Max. Outlet: 20bar (290psi) / Cv 0.06
Heated Block Manifold Block: Gas or Liquid / Max. Pressure: 300 bar (4,350 psi) / Power Supply: 115V or 230V / ATEX, IECEx & CSA Certified
Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Inconel® X750 Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX and IECEx Certified
Steam or Electric Dual-Heated Pressure Regulator: Gas or Liquid / Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 150 bar (2,175 psi) / Cv 0.06 / ATEX and IECEx Certified
Single-Heated Pressure Regulator: Gas / Inconel® X750 Diaphragm / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 35 bar (510 psi) / Cv 0.06 / ATEX, IECEx & CSA Certified
XHS411
Single-Heated Pressure Regulator: Gas / Inconel® X750 Piston / Non-Venting / Max. Inlet: 414 bar (6,000 psi) / Max. Outlet: 150 bar (2,175 psi) / Cv 0.06 / ATEX, IECEx & CSA Certified
